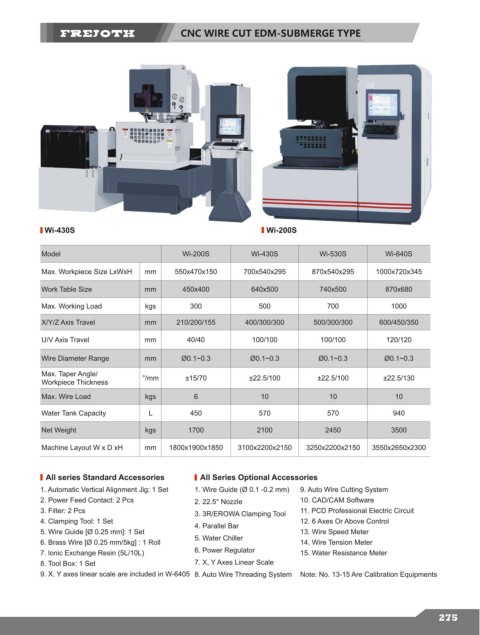

CNC WIRE CUT EDM-SUBMERGE TYPE
Wi-430S Wi-200S
Model Wi-200S Wi-430S Wi-530S Wi-640S
Max. Workpiece Size LxWxH mm 550x470x150 700x540x295 870x540x295 1000x720x345
Work Table Size mm 450x400 640x500 740x500 870x680
Max. Working Load kgs 300 500 700 1000
X/Y/Z Axis Travel mm 210/200/155 400/300/300 500/300/300 600/450/350
U/V Axis Travel mm 40/40 100/100 100/100 120/120
Wire Diameter Range mm Ø0.1~0.3 Ø0.1~0.3 Ø0.1~0.3 Ø0.1~0.3
Max. Taper Angle/
Workpiece Thickness °/mm ±15/70 ±22.5/100 ±22.5/100 ±22.5/130
Max. Wire Load kgs 6 10 10 10
Water Tank Capacity L 450 570 570 940
Net Weight kgs 1700 2100 2450 3500
Machine Layout W x D xH mm 1800x1900x1850 3100x2200x2150 3250x2200x2150 3550x2650x2300
All series Standard Accessories All Series Optional Accessories
1. Automatic Vertical Alignment Jig: 1 Set 1. Wire Guide (Ø 0.1 -0.2 mm) 9. Auto Wire Cutting System
2. Power Feed Contact: 2 Pcs 2. 22.5° Nozzle 10. CAD/CAM Software
3. Filter: 2 Pcs 3. 3R/EROWA Clamping Tool 11. PCD Professional Electric Circuit
4. Clamping Tool: 1 Set 4. Parallel Bar 12. 6 Axes Or Above Control
5. Wire Guide [Ø 0.25 mm]: 1 Set 13. Wire Speed Meter
6. Brass Wire [Ø 0.25 mm/5kg] : 1 Roll 5. Water Chiller 14. Wire Tension Meter
7. lonic Exchange Resin (5L/10L) 6. Power Regulator 15. Water Resistance Meter
8. Tool Box: 1 Set 7. X, Y Axes Linear Scale
9. X. Y axes linear scale are included in W-6405 8. Auto Wire Threading System Note: No. 13-15 Are Calibration Equipments
