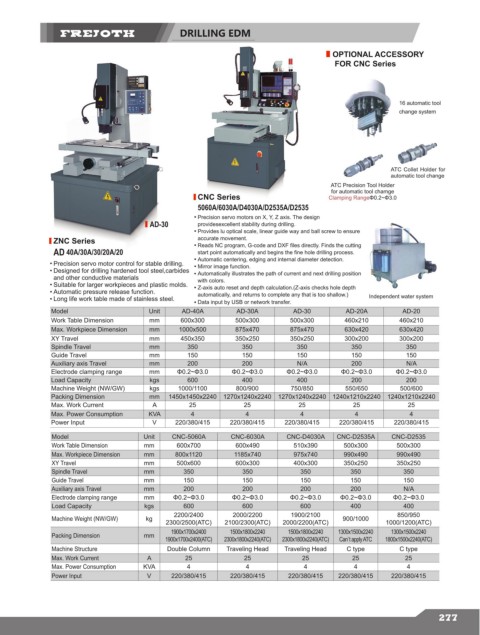

Page 279 - metal2022

DRILLING EDM

OPTIONAL ACCESSORY
FOR CNC Series

16 automatic tool
change system

ATC Collet Holder for
automatic tool change
ATC Precision Tool Holder
for automatic tool chamge
CNC Series Clamping RangeΦ0.2~Φ3.0
5060A/6030A/D4030A/D2535A/D2535
Precision servo motors on X, Y, Z axis. The design
AD-30 providesexcellent stability during drilling.
Provides lu optical scale, linear guide way and ball screw to ensure
ZNC Series accurate movement.
Reads NC program, G-code and DXF files directly. Finds the cutting
AD 40A/30A/30/20A/20 start point automatically and begins the fine hole drilling process.
Automatic centering, edging and internal diameter detection.
Precision servo motor control for stable drilling. Mirror image function.
Designed for drilling hardened tool steel,carbides Automatically illustrates the path of current and next drilling position
and other conductive materials with colors.
Suitable for larger workpieces and plastic molds. Z-axis auto reset and depth calculation.(Z-axis checks hole depth
Automatic pressure release function. automatically, and returns to complete any that is too shallow.)
Long life work table made of stainless steel. Independent water system
Data input by USB or network transfer.
Model Unit AD-40A AD-30A AD-30 AD-20A AD-20
Work Table Dimension mm 600x300 500x300 500x300 460x210 460x210
Max. Workpiece Dimension mm 1000x500 875x470 875x470 630x420 630x420
XY Travel mm 450x350 350x250 350x250 300x200 300x200
Spindle Travel mm 350 350 350 350 350
Guide Travel mm 150 150 150 150 150
Auxiliary axis Travel mm 200 200 N/A 200 N/A
Electrode clamping range mm Φ0.2~Φ3.0 Φ0.2~Φ3.0 Φ0.2~Φ3.0 Φ0.2~Φ3.0 Φ0.2~Φ3.0
Load Capacity kgs 600 400 400 200 200
Machine Weight (NW/GW) kgs 1000/1100 800/900 750/850 550/650 500/600
Packing Dimension mm 1450x1450x2240 1270x1240x2240 1270x1240x2240 1240x1210x2240 1240x1210x2240
Max. Work Current A 25 25 25 25 25
Max. Power Consumption KVA 4 4 4 4 4
Power Input V 220/380/415 220/380/415 220/380/415 220/380/415 220/380/415
Model Unit CNC-5060A CNC-6030A CNC-D4030A CNC-D2535A CNC-D2535
Work Table Dimension mm 600x700 600x490 510x390 500x300 500x300
Max. Workpiece Dimension mm 800x1120 1185x740 975x740 990x490 990x490
XY Travel mm 500x600 600x300 400x300 350x250 350x250
Spindle Travel mm 350 350 350 350 350
Guide Travel mm 150 150 150 150 150
Auxiliary axis Travel mm 200 200 200 200 N/A
Electrode clamping range mm Φ0.2~Φ3.0 Φ0.2~Φ3.0 Φ0.2~Φ3.0 Φ0.2~Φ3.0 Φ0.2~Φ3.0
Load Capacity kgs 600 600 600 400 400
2200/2400 2000/2200 1900/2100 850/950
Machine Weight (NW/GW) kg 900/1000
2300/2500(ATC) 2100/2300(ATC) 2000/2200(ATC) 1000/1200(ATC)
Packing Dimension mm 1900x1700x2400 1500x1800x2240 1500x1800x2240 1300x1500x2240 1300x1500x2240
1900x1700x2400(ATC) 2300x1800x2240(ATC) 2300x1800x2240(ATC) Can`t apply ATC 1800x1500x2240(ATC)
Machine Structure Double Column Traveling Head Traveling Head C type C type
Max. Work Current A 25 25 25 25 25
Max. Power Consumption KVA 4 4 4 4 4
Power Input V 220/380/415 220/380/415 220/380/415 220/380/415 220/380/415
