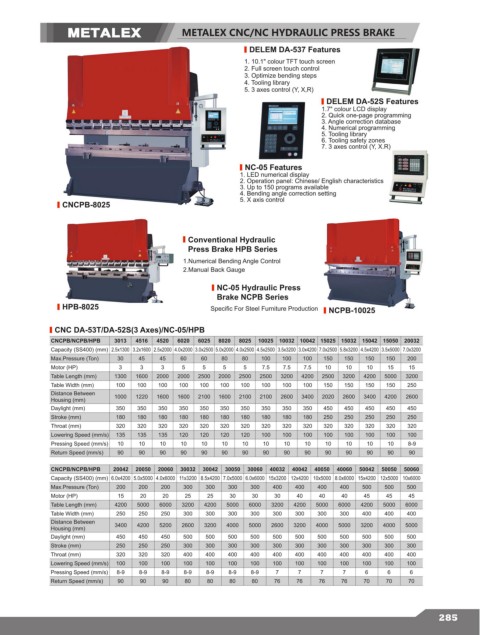

METALEX CNC/NC HYDRAULIC PRESS BRAKE

DELEM DA-537 Features
1. 10.1" colour TFT touch screen
2. Full screen touch control
3. Optimize bending steps
4. Tooling library
5. 3 axes control (Y, X,R)
DELEM DA-52S Features
1.7" colour LCD display
2. Quick one-page programming
3. Angle correction database
4. Numerical programming
5. Tooling library
6. Tooling safety zones
7. 3 axes control (Y, X.R)

NC-05 Features
1. LED numerical display
2. Operation panel: Chinese/ English characteristics
3. Up to 150 programs available
4. Bending angle correction setting
CNCPB-8025 5. X axis control

Conventional Hydraulic
Press Brake HPB Series
1.Numerical Bending Angle Control
2.Manual Back Gauge

NC-05 Hydraulic Press
Brake NCPB Series
HPB-8025 Specific For Steel Furniture Production NCPB-10025

CNC DA-53T/DA-52S(3 Axes)/NC-05/HPB
CNCPB/NCPB/HPB 3013 4516 4520 6020 6025 8020 8025 10025 10032 10042 15025 15032 15042 15050 20032
Capacity (SS400) (mm) 2.5x1300 3.2x1600 2.5x2000 4.0x2000 3.0x2500 5.0x2000 4.0x2500 4.5x2500 3.5x3200 3.0x4200 7.0x2500 5.8x3200 4.5x4200 3.5x5000 7.0x3200
Max.Pressure (Ton) 30 45 45 60 60 80 80 100 100 100 150 150 150 150 200
Motor (HP) 3 3 3 5 5 5 5 7.5 7.5 7.5 10 10 10 15 15
Table Length (mm) 1300 1600 2000 2000 2500 2000 2500 2500 3200 4200 2500 3200 4200 5000 3200
Table Width (mm) 100 100 100 100 100 100 100 100 100 100 150 150 150 150 250
Distance Between
Housing (mm) 1000 1220 1600 1600 2100 1600 2100 2100 2600 3400 2020 2600 3400 4200 2600
Daylight (mm) 350 350 350 350 350 350 350 350 350 350 450 450 450 450 450
Stroke (mm) 180 180 180 180 180 180 180 180 180 180 250 250 250 250 250
Throat (mm) 320 320 320 320 320 320 320 320 320 320 320 320 320 320 320
Lowering Speed (mm/s) 135 135 135 120 120 120 120 100 100 100 100 100 100 100 100
Pressing Speed (mm/s) 10 10 10 10 10 10 10 10 10 10 10 10 10 10 8-9
Return Speed (mm/s) 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90
CNCPB/NCPB/HPB 20042 20050 20060 30032 30042 30050 30060 40032 40042 40050 40060 50042 50050 50060
Capacity (SS400) (mm) 6.0x4200 5.0x5000 4.0x6000 11x3200 8.5x4200 7.0x5000 6.0x6000 15x3200 12x4200 10x5000 8.0x6000 15x4200 12x5000 10x6000
Max.Pressure (Ton) 200 200 200 300 300 300 300 400 400 400 400 500 500 500
Motor (HP) 15 20 20 25 25 30 30 30 40 40 40 45 45 45
Table Length (mm) 4200 5000 6000 3200 4200 5000 6000 3200 4200 5000 6000 4200 5000 6000
Table Width (mm) 250 250 250 300 300 300 300 300 300 300 300 400 400 400
Distance Between 3400 4200 5200 2600 3200 4000 5000 2600 3200 4000 5000 3200 4000 5000
Housing (mm)
Daylight (mm) 450 450 450 500 500 500 500 500 500 500 500 500 500 500
Stroke (mm) 250 250 250 300 300 300 300 300 300 300 300 300 300 300
Throat (mm) 320 320 320 400 400 400 400 400 400 400 400 400 400 400
Lowering Speed (mm/s) 100 100 100 100 100 100 100 100 100 100 100 100 100 100
Pressing Speed (mm/s) 8-9 8-9 8-9 8-9 8-9 8-9 8-9 7 7 7 7 6 6 6
Return Speed (mm/s) 90 90 90 80 80 80 80 76 76 76 76 70 70 70
