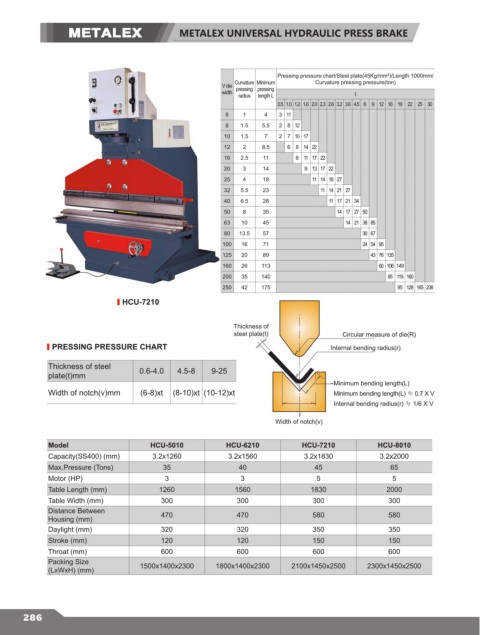

METALEX UNIVERSAL HYDRAULIC PRESS BRAKE

Pressing pressure chart/Steel plate(45Kg/mm²)/Length 1000mm/
Curvature Minimum Curvature pressing pressure(ton)
V die pressing pressing
width t
radius length L
0.5 1.0 1.2 1.6 2.0 2.3 2.6 3.2 3.6 4.5 6 9 12 16 19 22 25 30
6 1 4 3 11
8 1.5 5.5 2 8 12
10 1.5 7 2 7 10 17
12 2 8.5 6 8 14 22
16 2.5 11 6 11 17 22
20 3 14 9 13 17 22
25 4 18 11 14 18 27
32 5.5 23 11 14 21 27
40 6.5 28 11 17 21 34
50 8 35 14 17 27 50
63 10 45 14 21 38 85
80 13.5 57 30 67
100 16 71 24 54 95
125 20 89 43 76 135
160 26 113 60 106 149
200 35 140 85 119 160
250 42 175 95 128 165 238
HCU-7210

Thickness of
steel plate(t) Circular measure of die(R)
PRESSING PRESSURE CHART Internal bending radius(r)

Thickness of steel 0.6-4.0 4.5-8 9-25
plate(t)mm
Minimum bending length(L)
Width of notch(v)mm (6-8)xt (8-10)xt (10-12)xt Minimum bending length(L) ≒ 0.7 X V
Internal bending radius(r) ≒ 1/6 X V

Width of notch(v)

Model HCU-5010 HCU-6210 HCU-7210 HCU-8010
Capacity(SS400) (mm) 3.2x1260 3.2x1560 3.2x1830 3.2x2000
Max.Pressure (Tons) 35 40 45 65
Motor (HP) 3 3 5 5
Table Length (mm) 1260 1560 1830 2000
Table Width (mm) 300 300 300 300
Distance Between 470 470 580 580
Housing (mm)
Daylight (mm) 320 320 350 350
Stroke (mm) 120 120 150 150
Throat (mm) 600 600 600 600
Packing Size 1500x1400x2300 1800x1400x2300 2100x1450x2500 2300x1450x2500
(LxWxH) (mm)
