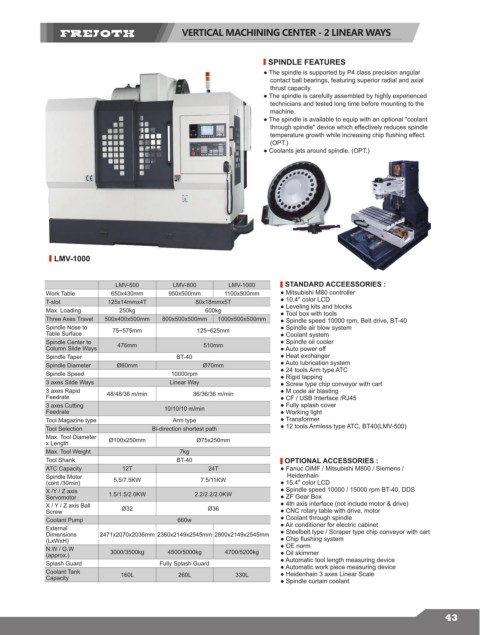

VERTICAL MACHINING CENTER - 2 LINEAR WAYS

SPINDLE FEATURES
● The spindle is supported by P4 class precision angular
contact ball bearings, featuring superior radial and axial
thrust capacity.
● The spindle is carefully assembled by highly experienced
technicians and tested long time before mounting to the
machine.
● The spindle is available to equip with an optional "coolant
through spindle" device which effectively reduces spindle
temperature growth while increasing chip flushing effect.
(OPT.)
● Coolants jets around spindle. (OPT.)

LMV-1000

LMV-500 LMV-800 LMV-1000 STANDARD ACCEESSORIES :
Work Table 650x430mm 950x500mm 1100x500mm ● Mitsubishi M80 controller
T-slot 125x14mmx4T 80x18mmx5T ● 10.4" color LCD
Max. Loading 250kg 600kg ● Leveling kits and blocks
● Tool box with tools
Three Axes Travel 500x400x500mm 800x500x500mm 1000x500x500mm ● Spindle speed 10000 rpm, Belt drive, BT-40
Spindle Nose to 75~575mm 125~625mm ● Spindle air blow system
Table Surface ● Coolant system
Spindle Center to 476mm 510mm ● Spindle oil cooler
Column Slide Ways ● Auto power off
Spindle Taper BT-40 ● Heat exchanger
Spindle Diameter Ø60mm Ø70mm ● Auto lubrication system
Spindle Speed 10000rpm ● 24 tools Arm type ATC
● Rigid tapping
3 axes Silde Ways Linear Way ● Screw type chip conveyor with cart
3 axes Rapid 48/48/36 m/min 36/36/36 m/min ● M code air blasting
Feedrate ● CF / USB Interface /RJ45
3 axes Cutting 10/10/10 m/min ● Fully splash cover
Feedrate ● Working light
Tool Magazine type Arm type ● Transformer
Tool Selection Bi-direction shortest path ● 12 tools Armless type ATC, BT40(LMV-500)
Max. Tool Diameter Ø100x250mm Ø75x250mm
x Length
Max. Tool Weight 7kg
Tool Shank BT-40 OPTIONAL ACCESSORIES :
ATC Capacity 12T 24T ● Fanuc OiMF / Mitsubishi M800 / Siemens /
Spindle Motor 5.5/7.5KW 7.5/11KW Heidenhain
(cont./30min) ● 15.4" color LCD
X /Y / Z axis 1.5/1.5/2.0KW 2.2/2.2/2.0KW ● Spindle speed 10000 / 15000 rpm BT-40, DDS
Servomotor ● ZF Gear Box
X / Y / Z axis Ball Ø32 Ø36 ● 4th axis interface (not include motor & drive)
Screw ● CNC rotary table with drive, motor
Coolant Pump 660w ● Coolant through spindle
External ● Air conditioner for electric cabinet
● Steelbelt type / Scraper type chip conveyor with cart
Dimensions 2471x2070x2036mm 2360x2149x2545mm 2800x2149x2545mm
(LxWxH) ● Chip flushing system
N.W / G.W 3000/3500kg 4500/5000kg 4700/5200kg ● CE norm
(approx.) ● Oil skimmer
Splash Guard Fully Splash Guard ● Automatic tool length measuring device
● Automatic work piece measuring device
Coolant Tank 160L 260L 330L ● Heidenhain 3 axes Linear Scale
Capacity ● Spindle curtain coolant
