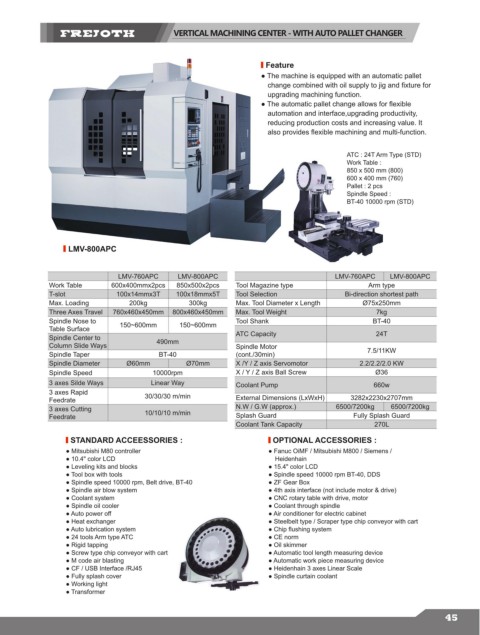

VERTICAL MACHINING CENTER - WITH AUTO PALLET CHANGER

Feature
● The machine is equipped with an automatic pallet
change combined with oil supply to jig and fixture for
upgrading machining function.
● The automatic pallet change allows for flexible
automation and interface,upgrading productivity,
reducing production costs and increasing value. It
also provides flexible machining and multi-function.

ATC : 24T Arm Type (STD)
Work Table :
850 x 500 mm (800)
600 x 400 mm (760)
Pallet : 2 pcs
Spindle Speed :
BT-40 10000 rpm (STD)

LMV-800APC

LMV-760APC LMV-800APC LMV-760APC LMV-800APC
Work Table 600x400mmx2pcs 850x500x2pcs Tool Magazine type Arm type
T-slot 100x14mmx3T 100x18mmx5T Tool Selection Bi-direction shortest path
Max. Loading 200kg 300kg Max. Tool Diameter x Length Ø75x250mm
Three Axes Travel 760x460x450mm 800x460x450mm Max. Tool Weight 7kg
Spindle Nose to 150~600mm 150~600mm Tool Shank BT-40
Table Surface
Spindle Center to 490mm ATC Capacity 24T
Column Slide Ways Spindle Motor
Spindle Taper BT-40 (cont./30min) 7.5/11KW
Spindle Diameter Ø60mm Ø70mm X /Y / Z axis Servomotor 2.2/2.2/2.0 KW
Spindle Speed 10000rpm X / Y / Z axis Ball Screw Ø36
3 axes Silde Ways Linear Way Coolant Pump 660w
3 axes Rapid 30/30/30 m/min
Feedrate External Dimensions (LxWxH) 3282x2230x2707mm
3 axes Cutting 10/10/10 m/min N.W / G.W (approx.) 6500/7200kg 6500/7200kg
Feedrate Splash Guard Fully Splash Guard
Coolant Tank Capacity 270L
STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Mitsubishi M80 controller ● Fanuc OiMF / Mitsubishi M800 / Siemens /
● 10.4" color LCD Heidenhain
● Leveling kits and blocks ● 15.4" color LCD
● Tool box with tools ● Spindle speed 10000 rpm BT-40, DDS
● Spindle speed 10000 rpm, Belt drive, BT-40 ● ZF Gear Box
● Spindle air blow system ● 4th axis interface (not include motor & drive)
● Coolant system ● CNC rotary table with drive, motor
● Spindle oil cooler ● Coolant through spindle
● Auto power off ● Air conditioner for electric cabinet
● Heat exchanger ● Steelbelt type / Scraper type chip conveyor with cart
● Auto lubrication system ● Chip flushing system
● 24 tools Arm type ATC ● CE norm
● Rigid tapping ● Oil skimmer
● Screw type chip conveyor with cart ● Automatic tool length measuring device
● M code air blasting ● Automatic work piece measuring device
● CF / USB Interface /RJ45 ● Heidenhain 3 axes Linear Scale
● Fully splash cover ● Spindle curtain coolant
● Working light
● Transformer
