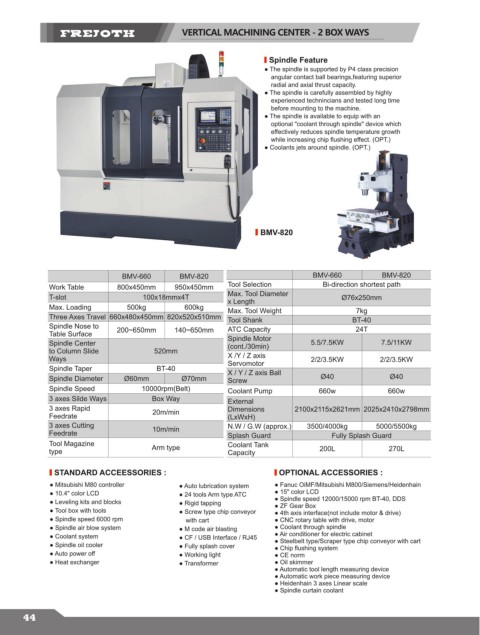

VERTICAL MACHINING CENTER - 2 BOX WAYS

Spindle Feature
● The spindle is supported by P4 class precision
angular contact ball bearings,featuring superior
radial and axial thrust capacity.
● The spindle is carefully assembled by highly
experienced technincians and tested long time
before mounting to the machine.
● The spindle is available to equip with an
optional "coolant through spindle" device which
effectively reduces spindle temperature growth
while increasing chip flushing effect. (OPT.)
● Coolants jets around spindle. (OPT.)

BMV-820

BMV-660 BMV-820 BMV-660 BMV-820
Work Table 800x450mm 950x450mm Tool Selection Bi-direction shortest path
T-slot 100x18mmx4T Max. Tool Diameter Ø76x250mm
x Length
Max. Loading 500kg 600kg Max. Tool Weight 7kg
Three Axes Travel 660x480x450mm 820x520x510mm Tool Shank BT-40
Spindle Nose to 200~650mm 140~650mm ATC Capacity 24T
Table Surface Spindle Motor
Spindle Center (cont./30min) 5.5/7.5KW 7.5/11KW
to Column Slide 520mm
Ways X /Y / Z axis 2/2/3.5KW 2/2/3.5KW
Servomotor
Spindle Taper BT-40 X / Y / Z axis Ball
Spindle Diameter Ø60mm Ø70mm Screw Ø40 Ø40
Spindle Speed 10000rpm(Belt) Coolant Pump 660w 660w
3 axes Silde Ways Box Way External
3 axes Rapid 20m/min Dimensions 2100x2115x2621mm 2025x2410x2798mm
Feedrate (LxWxH)
3 axes Cutting 10m/min N.W / G.W (approx.) 3500/4000kg 5000/5500kg
Feedrate Splash Guard Fully Splash Guard
Tool Magazine Arm type Coolant Tank
type Capacity 200L 270L

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :

● Mitsubishi M80 controller ● Auto lubrication system ● Fanuc OiMF/Mitsubishi M800/Siemens/Heidenhain
● 10.4" color LCD ● 24 tools Arm type ATC ● 15" color LCD
● Leveling kits and blocks ● Rigid tapping ● Spindle speed 12000/15000 rpm BT-40, DDS
● ZF Gear Box
● Tool box with tools ● Screw type chip conveyor ● 4th axis interface(not include motor & drive)
● Spindle speed 6000 rpm with cart ● CNC rotary table with drive, motor
● Spindle air blow system ● M code air blasting ● Coolant through spindle
● Coolant system ● CF / USB Interface / RJ45 ● Air conditioner for electric cabinet
● Spindle oil cooler ● Fully splash cover ● Steelbelt type/Scraper type chip conveyor with cart
● Chip flushing system
● Auto power off ● Working light ● CE norm
● Heat exchanger ● Transformer ● Oil skimmer
● Automatic tool length measuring device
● Automatic work piece measuring device
● Heidenhain 3 axes Linear scale
● Spindle curtain coolant

44
