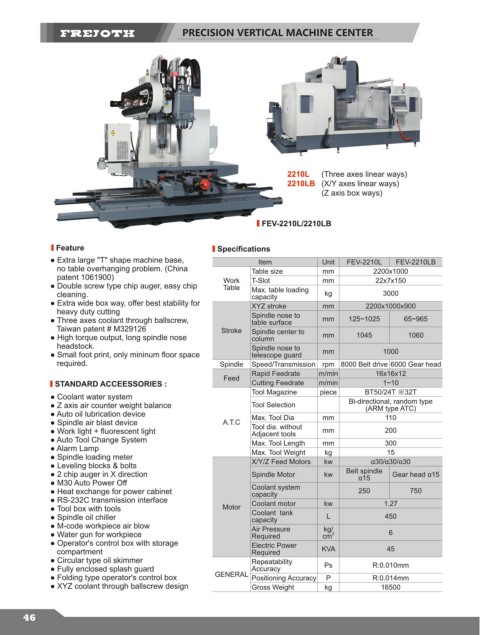

PRECISION VERTICAL MACHINE CENTER

2210L (Three axes linear ways)
2210LB (X/Y axes linear ways)
(Z axis box ways)

FEV-2210L/2210LB

Feature Specifications
● Extra large "T" shape machine base, Item Unit FEV-2210L FEV-2210LB
no table overhanging problem. (China Table size mm 2200x1000
patent 1061900) Work T-Slot mm 22x7x150
● Double screw type chip auger, easy chip Table Max. table loading
cleaning. capacity kg 3000
● Extra wide box way, offer best stability for XYZ stroke mm 2200x1000x900
heavy duty cutting Spindle nose to
● Three axes coolant through ballscrew, table surface mm 125~1025 65~965
Taiwan patent # M329126 Stroke Spindle center to
● High torque output, long spindle nose column mm 1045 1060
headstock. Spindle nose to
● Small foot print, only mininum floor space telescope guard mm 1000
required. Spindle Speed/Transmission rpm 8000 Belt drive 6000 Gear head
Rapid Feedrate m/min 16x16x12
Feed
STANDARD ACCEESSORIES : Cutting Feedrate m/min 1~10
● Coolant water system Tool Magazine piece BT50/24T ※32T
● Z axis air counter weight balance Tool Selection Bi-directional, random type
(ARM type ATC)
● Auto oil lubrication device Max. Tool Dia mm 110
● Spindle air blast device A.T.C Tool dia. without
● Work light + fluorescent light Adjacent tools mm 200
● Auto Tool Change System Max. Tool Length mm 300
● Alarm Lamp Max. Tool Weight kg 15
● Spindle loading meter
● Leveling blocks & bolts X/Y/Z Feed Motors kw α30/α30/α30
● 2 chip auger in X direction Spindle Motor kw Belt spindle Gear head α15
α15
● M30 Auto Power Off Coolant system
● Heat exchange for power cabinet capacity 250 750
● RS-232C transmission interface Coolant motor kw 1.27
● Tool box with tools Motor Coolant tank
● Spindle oil chiller capacity L 450
● M-code workpiece air blow Air Pressure kg/
● Water gun for workpiece Required cm 2 6
● Operator's control box with storage Electric Power
compartment Required KVA 45
● Circular type oil skimmer Repeatability
● Fully enclosed splash guard Accuracy Ps R:0.010mm
● Folding type operator's control box GENERAL Positioning Accuracy P R:0.014mm
● XYZ coolant through ballscrew design Gross Weight kg 16500

46
