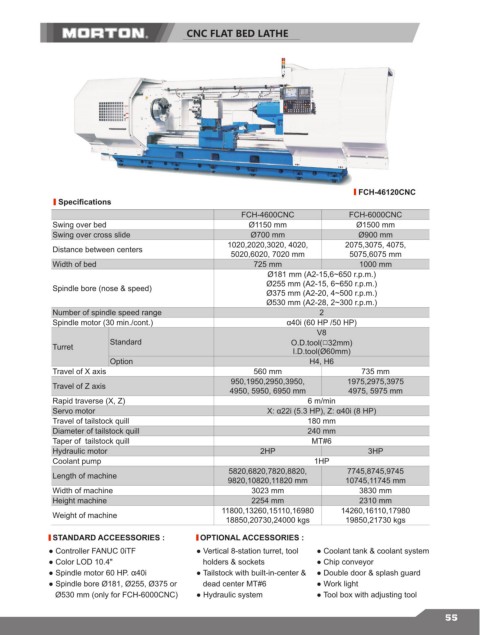

CNC FLAT BED LATHE

FCH-46120CNC
Specifications
FCH-4600CNC FCH-6000CNC
Swing over bed Ø1150 mm Ø1500 mm
Swing over cross slide Ø700 mm Ø900 mm
1020,2020,3020, 4020, 2075,3075, 4075,
Distance between centers
5020,6020, 7020 mm 5075,6075 mm
Width of bed 725 mm 1000 mm
Ø181 mm (A2-15,6~650 r.p.m.)
Ø255 mm (A2-15, 6~650 r.p.m.)
Spindle bore (nose & speed)
Ø375 mm (A2-20, 4~500 r.p.m.)
Ø530 mm (A2-28, 2~300 r.p.m.)
Number of spindle speed range 2
Spindle motor (30 min./cont.) α40i (60 HP /50 HP)
V8
Standard O.D.tool(□32mm)
Turret
I.D.tool(Ø60mm)
Option H4, H6
Travel of X axis 560 mm 735 mm
950,1950,2950,3950, 1975,2975,3975
Travel of Z axis
4950, 5950, 6950 mm 4975, 5975 mm
Rapid traverse (X, Z) 6 m/min
Servo motor X: α22i (5.3 HP), Z: α40i (8 HP)
Travel of tailstock quill 180 mm
Diameter of tailstock quill 240 mm
Taper of tailstock quill MT#6
Hydraulic motor 2HP 3HP
Coolant pump 1HP
5820,6820,7820,8820, 7745,8745,9745
Length of machine
9820,10820,11820 mm 10745,11745 mm
Width of machine 3023 mm 3830 mm
Height machine 2254 mm 2310 mm
11800,13260,15110,16980 14260,16110,17980
Weight of machine
18850,20730,24000 kgs 19850,21730 kgs
STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Controller FANUC 0iTF ● Vertical 8-station turret, tool ● Coolant tank & coolant system
● Color LOD 10.4" holders & sockets ● Chip conveyor
● Spindle motor 60 HP. α40i ● Tailstock with built-in-center & ● Double door & splash guard
● Spindle bore Ø181, Ø255, Ø375 or dead center MT#6 ● Work light
Ø530 mm (only for FCH-6000CNC) ● Hydraulic system ● Tool box with adjusting tool
