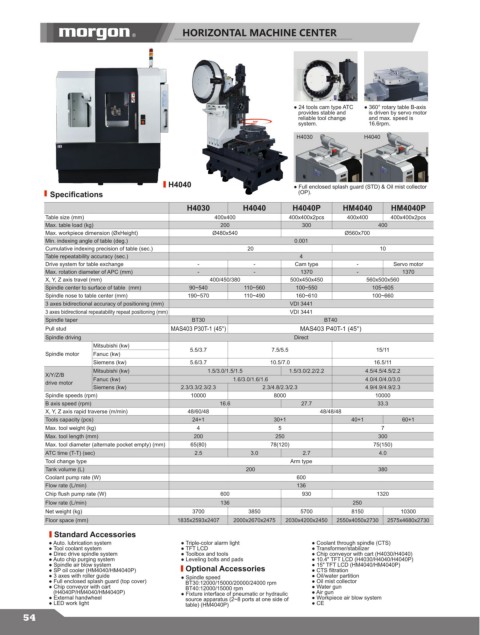

HORIZONTAL MACHINE CENTER

● 24 tools cam type ATC ● 360° rotary table B-axis
provides stable and is driven by servo motor
reliable tool change and max. speed is
system. 16.6rpm.
H4030 H4040

H4040 ● Full enclosed splash guard (STD) & Oil mist collector
Specifications (OP).
H4030 H4040 H4040P HM4040 HM4040P
Table size (mm) 400x400 400x400x2pcs 400x400 400x400x2pcs
Max. table load (kg) 200 300 400
Max. workpiece dimension (ØxHeight) Ø480x540 Ø560x700
Min. indexing angle of table (deg.) 0.001
Cumulative indexing precision of table (sec.) 20 10
Table repeatability accuracy (sec.) 4
Drive system for table exchange - - Cam type - Servo motor
Max. rotation diameter of APC (mm) - - 1370 - 1370
X, Y, Z axis travel (mm) 400/450/380 500x450x450 560x500x560
Spindle center to surface of table (mm) 90~540 110~560 100~550 105~605
Spindle nose to table center (mm) 190~570 110~490 160~610 100~660
3 axes bidirectional accuracy of positioning (mm) VDI 3441
3 axes bidirectional repeatability repeat positioning (mm) VDI 3441
Spindle taper BT30 BT40
Pull stud MAS403 P30T-1 (45°) MAS403 P40T-1 (45°)
Spindle driving Direct
Mitsubishi (kw)
Spindle motor Fanuc (kw) 5.5/3.7 7.5/5.5 15/11
Siemens (kw) 5.6/3.7 10.5/7.0 16.5/11
Mitsubishi (kw) 1.5/3.0/1.5/1.5 1.5/3.0/2.2/2.2 4.5/4.5/4.5/2.2
X/Y/Z/B Fanuc (kw) 1.6/3.0/1.6/1.6 4.0/4.0/4.0/3.0
drive motor
Siemens (kw) 2.3/3.3/2.3/2.3 2.3/4.8/2.3/2.3 4.9/4.9/4.9/2.3
Spindle speeds (rpm) 10000 8000 10000
B axis speed (rpm) 16.6 27.7 33.3
X, Y, Z axis rapid traverse (m/min) 48/60/48 48/48/48
Tools capacity (pcs) 24+1 30+1 40+1 60+1
Max. tool weight (kg) 4 5 7
Max. tool length (mm) 200 250 300
Max. tool diameter (alternate pocket empty) (mm) 65(80) 78(120) 75(150)
ATC time (T-T) (sec) 2.5 3.0 2.7 4.0
Tool change type Arm type
Tank volume (L) 200 380
Coolant pump rate (W) 600
Flow rate (L/min) 136
Chip flush pump rate (W) 600 930 1320
Flow rate (L/min) 136 250
Net weight (kg) 3700 3850 5700 8150 10300
Floor space (mm) 1835x2593x2407 2000x2670x2475 2030x4200x2450 2550x4050x2730 2575x4680x2730
Standard Accessories
● Auto. lubrication system ● Triple-color alarm light ● Coolant through spindle (CTS)
● Tool coolant system ● TFT LCD ● Transformer/stabilizer
● Direc drive spindle system ● Toolbox and tools ● Chip conveyor with cart (H4030/H4040)
● Auto chip purging system ● Leveling bolts and pads ● 10.4" TFT LCD (H4030/H4040/H4040P)
● Spindle air blow system ● 15" TFT LCD (HM4040/HM4040P)
● SP oil cooler (HM4040/HM4040P) Optional Accessories ● CTS filtration
● 3 axes with roller guide ● Spindle speed ● Oil/water partition
● Full enclosed splash guard (top cover) BT30:12000/15000/20000/24000 rpm ● Oil mist collector
● Chip conveyor with cart BT40:12000/15000 rpm ● Water gun
(H4040P/HM4040/HM4040P) ● Fixture interface of pneumatic or hydraulic ● Air gun
● External handwheel source apparatus (2~8 ports at one side of ● Workpiece air blow system
● LED work light table) (HM4040P) ● CE
54
