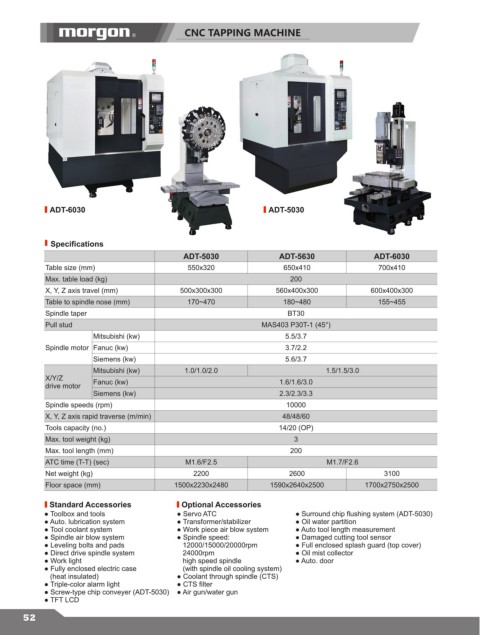

CNC TAPPING MACHINE

ADT-6030 ADT-5030

Specifications
ADT-5030 ADT-5630 ADT-6030
Table size (mm) 550x320 650x410 700x410
Max. table load (kg) 200
X, Y, Z axis travel (mm) 500x300x300 560x400x300 600x400x300
Table to spindle nose (mm) 170~470 180~480 155~455
Spindle taper BT30
Pull stud MAS403 P30T-1 (45°)
Mitsubishi (kw) 5.5/3.7
Spindle motor Fanuc (kw) 3.7/2.2
Siemens (kw) 5.6/3.7
Mitsubishi (kw) 1.0/1.0/2.0 1.5/1.5/3.0
X/Y/Z Fanuc (kw) 1.6/1.6/3.0
drive motor
Siemens (kw) 2.3/2.3/3.3
Spindle speeds (rpm) 10000
X, Y, Z axis rapid traverse (m/min) 48/48/60
Tools capacity (no.) 14/20 (OP)
Max. tool weight (kg) 3
Max. tool length (mm) 200
ATC time (T-T) (sec) M1.6/F2.5 M1.7/F2.6
Net weight (kg) 2200 2600 3100
Floor space (mm) 1500x2230x2480 1590x2640x2500 1700x2750x2500

Standard Accessories Optional Accessories
● Toolbox and tools ● Servo ATC ● Surround chip flushing system (ADT-5030)
● Auto. lubrication system ● Transformer/stabilizer ● Oil water partition
● Tool coolant system ● Work piece air blow system ● Auto tool length measurement
● Spindle air blow system ● Spindle speed: ● Damaged cutting tool sensor
● Leveling bolts and pads 12000/15000/20000rpm ● Full enclosed splash guard (top cover)
● Direct drive spindle system 24000rpm ● Oil mist collector
● Work light high speed spindle ● Auto. door
● Fully enclosed electric case (with spindle oil cooling system)
(heat insulated) ● Coolant through spindle (CTS)
● Triple-color alarm light ● CTS filter
● Screw-type chip conveyer (ADT-5030) ● Air gun/water gun
● TFT LCD
