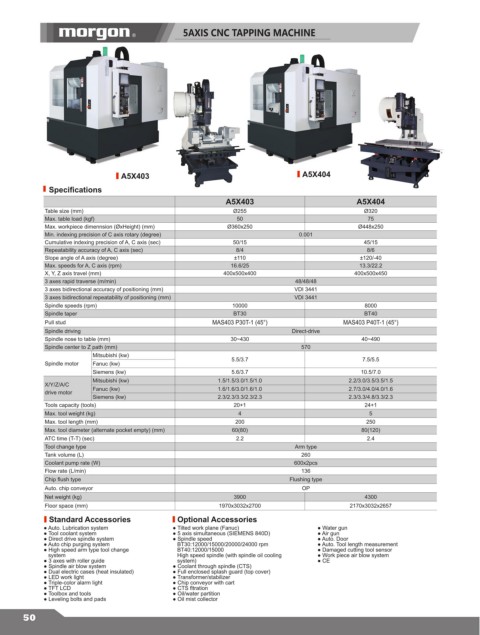

5AXIS CNC TAPPING MACHINE

A5X403 A5X404
Specifications
A5X403 A5X404
Table size (mm) Ø255 Ø320
Max. table load (kgf) 50 75
Max. workpiece dimennsion (ØxHeight) (mm) Ø360x250 Ø448x250
Min. indexing precision of C axis rotary (degree) 0.001
Cumulative indexing precision of A, C axis (sec) 50/15 45/15
Repeatability accuracy of A, C axis (sec) 8/4 8/6
Slope angle of A axis (degree) ±110 ±120/-40
Max. speeds for A, C axis (rpm) 16.6/25 13.3/22.2
X, Y, Z axis travel (mm) 400x500x400 400x500x450
3 axes rapid traverse (m/min) 48/48/48
3 axes bidirectional accuracy of positioning (mm) VDI 3441
3 axes bidirectional repeatability of positioning (mm) VDI 3441
Spindle speeds (rpm) 10000 8000
Spindle taper BT30 BT40
Pull stud MAS403 P30T-1 (45°) MAS403 P40T-1 (45°)
Spindle driving Direct-drive
Spindle nose to table (mm) 30~430 40~490
Spindle center to Z path (mm) 570
Mitsubishi (kw)
Spindle motor Fanuc (kw) 5.5/3.7 7.5/5.5
Siemens (kw) 5.6/3.7 10.5/7.0
Mitsubishi (kw) 1.5/1.5/3.0/1.5/1.0 2.2/3.0/3.5/3.5/1.5
X/Y/Z/A/C
drive motor Fanuc (kw) 1.6/1.6/3.0/1.6/1.0 2.7/3.0/4.0/4.0/1.6
Siemens (kw) 2.3/2.3/3.3/2.3/2.3 2.3/3.3/4.8/3.3/2.3
Tools capacity (tools) 20+1 24+1
Max. tool weight (kg) 4 5
Max. tool length (mm) 200 250
Max. tool diameter (alternate pocket empty) (mm) 60(80) 80(120)
ATC time (T-T) (sec) 2.2 2.4
Tool change type Arm type
Tank volume (L) 260
Coolant pump rate (W) 600x2pcs
Flow rate (L/min) 136
Chip flush type Flushing type
Auto. chip conveyor OP
Net weight (kg) 3900 4300
Floor space (mm) 1970x3032x2700 2170x3032x2657
Standard Accessories Optional Accessories
● Auto. Lubrication system ● Tilted work plane (Fanuc) ● Water gun
● Tool coolant system ● 5 axis simultaneous (SIEMENS 840D) ● Air gun
● Direct drive spindle system ● Spindle speed ● Auto. Door
● Auto chip purging system BT30:12000/15000/20000/24000 rpm ● Auto. Tool length measurement
● High speed arm type tool change BT40:12000/15000 ● Damaged cutting tool sensor
system High speed spindle (with spindle oil cooling ● Work piece air blow system
● 3 axes with roller guide system) ● CE
● Spindle air blow system ● Coolant through spindle (CTS)
● Dual electric cases (heat insulated) ● Full enclosed splash guard (top cover)
● LED work light ● Transformer/stabilizer
● Triple-color alarm light ● Chip conveyor with cart
● TFT LCD ● CTS fltration
● Toolbox and tools ● Oil/water partition
● Leveling bolts and pads ● Oil mist collector
