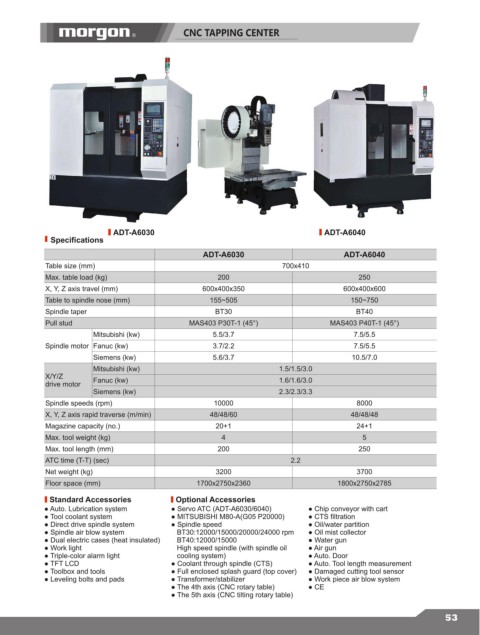

CNC TAPPING CENTER

ADT-A6030 ADT-A6040
Specifications

ADT-A6030 ADT-A6040
Table size (mm) 700x410
Max. table load (kg) 200 250
X, Y, Z axis travel (mm) 600x400x350 600x400x600
Table to spindle nose (mm) 155~505 150~750
Spindle taper BT30 BT40
Pull stud MAS403 P30T-1 (45°) MAS403 P40T-1 (45°)
Mitsubishi (kw) 5.5/3.7 7.5/5.5
Spindle motor Fanuc (kw) 3.7/2.2 7.5/5.5
Siemens (kw) 5.6/3.7 10.5/7.0
Mitsubishi (kw) 1.5/1.5/3.0
X/Y/Z Fanuc (kw) 1.6/1.6/3.0
drive motor
Siemens (kw) 2.3/2.3/3.3
Spindle speeds (rpm) 10000 8000
X, Y, Z axis rapid traverse (m/min) 48/48/60 48/48/48
Magazine capacity (no.) 20+1 24+1
Max. tool weight (kg) 4 5
Max. tool length (mm) 200 250
ATC time (T-T) (sec) 2.2
Net weight (kg) 3200 3700
Floor space (mm) 1700x2750x2360 1800x2750x2785
Standard Accessories Optional Accessories
● Auto. Lubrication system ● Servo ATC (ADT-A6030/6040) ● Chip conveyor with cart
● Tool coolant system ● MITSUBISHI M80-A(G05 P20000) ● CTS filtration
● Direct drive spindle system ● Spindle speed ● Oil/water partition
● Spindle air blow system BT30:12000/15000/20000/24000 rpm ● Oil mist collector
● Dual electric cases (heat insulated) BT40:12000/15000 ● Water gun
● Work light High speed spindle (with spindle oil ● Air gun
● Triple-color alarm light cooling system) ● Auto. Door
● TFT LCD ● Coolant through spindle (CTS) ● Auto. Tool length measurement
● Toolbox and tools ● Full enclosed splash guard (top cover) ● Damaged cutting tool sensor
● Leveling bolts and pads ● Transformer/stabilizer ● Work piece air blow system
● The 4th axis (CNC rotary table) ● CE
● The 5th axis (CNC tilting rotary table)
