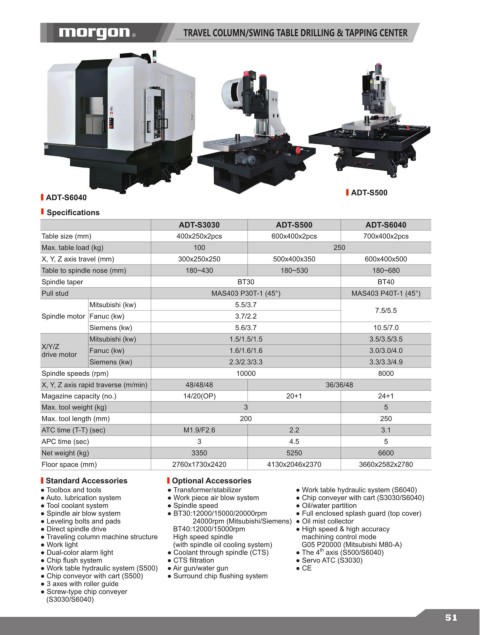

TRAVEL COLUMN/SWING TABLE DRILLING & TAPPING CENTER

ADT-S500
ADT-S6040
Specifications
ADT-S3030 ADT-S500 ADT-S6040
Table size (mm) 400x250x2pcs 600x400x2pcs 700x400x2pcs
Max. table load (kg) 100 250
X, Y, Z axis travel (mm) 300x250x250 500x400x350 600x400x500
Table to spindle nose (mm) 180~430 180~530 180~680
Spindle taper BT30 BT40
Pull stud MAS403 P30T-1 (45°) MAS403 P40T-1 (45°)
Mitsubishi (kw) 5.5/3.7 7.5/5.5
Spindle motor Fanuc (kw) 3.7/2.2
Siemens (kw) 5.6/3.7 10.5/7.0
Mitsubishi (kw) 1.5/1.5/1.5 3.5/3.5/3.5
X/Y/Z Fanuc (kw) 1.6/1.6/1.6 3.0/3.0/4.0
drive motor
Siemens (kw) 2.3/2.3/3.3 3.3/3.3/4.9
Spindle speeds (rpm) 10000 8000
X, Y, Z axis rapid traverse (m/min) 48/48/48 36/36/48
Magazine capacity (no.) 14/20(OP) 20+1 24+1
Max. tool weight (kg) 3 5
Max. tool length (mm) 200 250
ATC time (T-T) (sec) M1.9/F2.6 2.2 3.1
APC time (sec) 3 4.5 5
Net weight (kg) 3350 5250 6600
Floor space (mm) 2760x1730x2420 4130x2046x2370 3660x2582x2780
Standard Accessories Optional Accessories
● Toolbox and tools ● Transformer/stabilizer ● Work table hydraulic system (S6040)
● Auto. lubrication system ● Work piece air blow system ● Chip conveyer with cart (S3030/S6040)
● Tool coolant system ● Spindle speed ● Oil/water partition
● Spindle air blow system ● BT30:12000/15000/20000rpm ● Full enclosed splash guard (top cover)
● Leveling bolts and pads 24000rpm (Mitsubishi/Siemens) ● Oil mist collector
● Direct spindle drive BT40:12000/15000rpm ● High speed & high accuracy
● Traveling column machine structure High speed spindle machining control mode
● Work light (with spindle oil cooling system) G05 P20000 (Mitsubishi M80-A)
th
● Dual-color alarm light ● Coolant through spindle (CTS) ● The 4 axis (S500/S6040)
● Chip flush system ● CTS filtration ● Servo ATC (S3030)
● Work table hydraulic system (S500) ● Air gun/water gun ● CE
● Chip conveyor with cart (S500) ● Surround chip flushing system
● 3 axes with roller guide
● Screw-type chip conveyer
(S3030/S6040)
