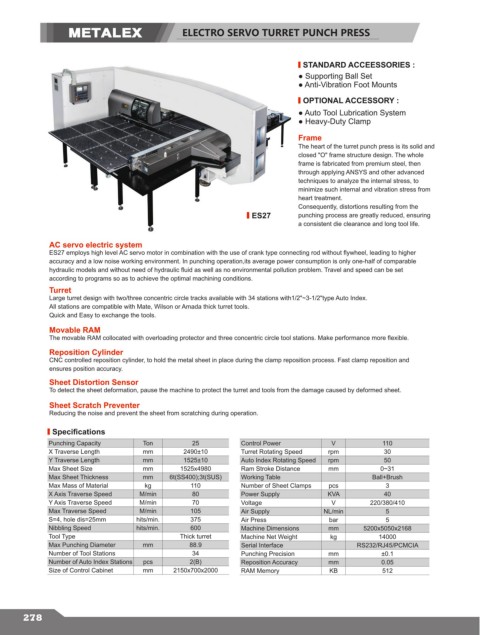

ELECTRO SERVO TURRET PUNCH PRESS

STANDARD ACCEESSORIES :
● Supporting Ball Set
● Anti-Vibration Foot Mounts
OPTIONAL ACCESSORY :
● Auto Tool Lubrication System
● Heavy-Duty Clamp

Frame
The heart of the turret punch press is its solid and
closed "O" frame structure design. The whole
frame is fabricated from premium steel, then
through applying ANSYS and other advanced
techniques to analyze the internal stress, to
minimize such internal and vibration stress from
heart treatment.
Consequently, distortions resulting from the
ES27 punching process are greatly reduced, ensuring
a consistent die clearance and long tool life.

AC servo electric system
ES27 employs high level AC servo motor in combination with the use of crank type connecting rod without flywheel, leading to higher
accuracy and a low noise working environment. In punching operation,its average power consumption is only one-half of comparable
hydraulic models and without need of hydraulic fluid as well as no environmental pollution problem. Travel and speed can be set
according to programs so as to achieve the optimal machining conditions.
Turret
Large turret design with two/three concentric circle tracks available with 34 stations with1/2"~3-1/2"type Auto Index.
All stations are compatible with Mate, Wilson or Amada thick turret tools.
Quick and Easy to exchange the tools.
Movable RAM
The movable RAM collocated with overloading protector and three concentric circle tool stations. Make performance more flexible.
Reposition Cylinder
CNC controlled reposition cylinder, to hold the metal sheet in place during the clamp reposition process. Fast clamp reposition and
ensures position accuracy.
Sheet Distortion Sensor
To detect the sheet deformation, pause the machine to protect the turret and tools from the damage caused by deformed sheet.
Sheet Scratch Preventer
Reducing the noise and prevent the sheet from scratching during operation.

Specifications
Punching Capacity Ton 25 Control Power V 110
X Traverse Length mm 2490±10 Turret Rotating Speed rpm 30
Y Traverse Length mm 1525±10 Auto Index Rotating Speed rpm 50
Max Sheet Size mm 1525x4980 Ram Stroke Distance mm 0~31
Max Sheet Thickness mm 6t(SS400);3t(SUS) Working Table Ball+Brush
Max Mass of Material kg 110 Number of Sheet Clamps pcs 3
X Axis Traverse Speed M/min 80 Power Supply KVA 40
Y Axis Traverse Speed M/min 70 Voltage V 220/380/410
Max Traverse Speed M/min 105 Air Supply NL/min 5
S=4, hole dis=25mm hits/min. 375 Air Press bar 5
Nibbling Speed hits/min. 600 Machine Dimensions mm 5200x5050x2168
Tool Type Thick turret Machine Net Weight kg 14000
Max Punching Diameter mm 88.9 Serial Interface RS232/RJ45/PCMCIA
Number of Tool Stations 34 Punching Precision mm ±0.1
Number of Auto Index Stations pcs 2(B) Reposition Accuracy mm 0.05
Size of Control Cabinet mm 2150x700x2000 RAM Memory KB 512
