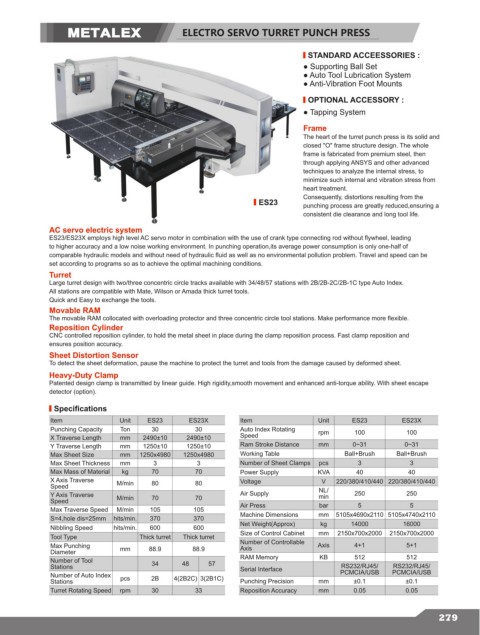

ELECTRO SERVO TURRET PUNCH PRESS

STANDARD ACCEESSORIES :
● Supporting Ball Set
● Auto Tool Lubrication System
● Anti-Vibration Foot Mounts

OPTIONAL ACCESSORY :
● Tapping System

Frame
The heart of the turret punch press is its solid and
closed "O" frame structure design. The whole
frame is fabricated from premium steel, then
through applying ANSYS and other advanced
techniques to analyze the internal stress, to
minimize such internal and vibration stress from
heart treatment.
Consequently, distortions resulting from the
ES23 punching process are greatly reduced,ensuring a
consistent die clearance and long tool life.
AC servo electric system
ES23/ES23X employs high level AC servo motor in combination with the use of crank type connecting rod without flywheel, leading
to higher accuracy and a low noise working environment. In punching operation,its average power consumption is only one-half of
comparable hydraulic models and without need of hydraulic fluid as well as no environmental pollution problem. Travel and speed can be
set according to programs so as to achieve the optimal machining conditions.
Turret
Large turret design with two/three concentric circle tracks available with 34/48/57 stations with 2B/2B-2C/2B-1C type Auto Index.
All stations are compatible with Mate, Wilson or Amada thick turret tools.
Quick and Easy to exchange the tools.
Movable RAM
The movable RAM collocated with overloading protector and three concentric circle tool stations. Make performance more flexible.
Reposition Cylinder
CNC controlled reposition cylinder, to hold the metal sheet in place during the clamp reposition process. Fast clamp reposition and
ensures position accuracy.
Sheet Distortion Sensor
To detect the sheet deformation, pause the machine to protect the turret and tools from the damage caused by deformed sheet.
Heavy-Duty Clamp
Patented design clamp is transmitted by linear guide. High rigidity,smooth movement and enhanced anti-torque ability. With sheet escape
detector (option).
Specifications
Item Unit ES23 ES23X Item Unit ES23 ES23X
Punching Capacity Ton 30 30 Auto Index Rotating rpm 100 100
X Traverse Length mm 2490±10 2490±10 Speed
Y Traverse Length mm 1250±10 1250±10 Ram Stroke Distance mm 0~31 0~31
Max Sheet Size mm 1250x4980 1250x4980 Working Table Ball+Brush Ball+Brush
Max Sheet Thickness mm 3 3 Number of Sheet Clamps pcs 3 3
Max Mass of Material kg 70 70 Power Supply KVA 40 40
X Axis Traverse M/min 80 80 Voltage V 220/380/410/440 220/380/410/440
Speed NL/
Y Axis Traverse M/min 70 70 Air Supply min 250 250
Speed
Max Traverse Speed M/min 105 105 Air Press bar 5 5
S=4,hole dis=25mm hits/min. 370 370 Machine Dimensions mm 5105x4690x2110 5105x4740x2110
Nibbling Speed hits/min. 600 600 Net Weight(Approx) kg 14000 16000
Tool Type Thick turret Thick turret Size of Control Cabinet mm 2150x700x2000 2150x700x2000
Max Punching mm 88.9 88.9 Number of Controllable Axis 4+1 5+1
Axis
Diameter
Number of Tool 34 48 57 RAM Memory KB 512 512
Stations Serial Interface RS232/RJ45/ RS232/RJ45/
Number of Auto Index pcs 2B 4(2B2C) 3(2B1C) PCMCIA/USB PCMCIA/USB
Stations Punching Precision mm ±0.1 ±0.1
Turret Rotating Speed rpm 30 33 Reposition Accuracy mm 0.05 0.05
