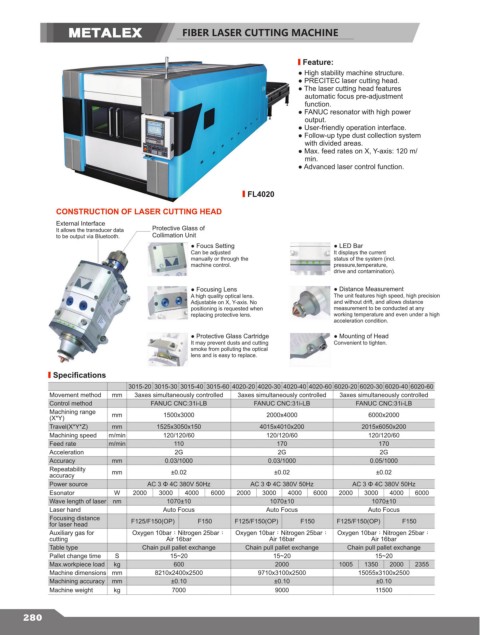

FIBER LASER CUTTING MACHINE

Feature:
● High stability machine structure.
● PRECITEC laser cutting head.
● The laser cutting head features
automatic focus pre-adjustment
function.
● FANUC resonator with high power
output.
● User-friendly operation interface.
● Follow-up type dust collection system
with divided areas.
● Max. feed rates on X, Y-axis: 120 m/
min.
● Advanced laser control function.

FL4020

CONSTRUCTION OF LASER CUTTING HEAD
External Interface
It allows the transducer data Protective Glass of
to be output via Bluetooth. Collimation Unit
● Foucs Setting ● LED Bar
Can be adjusted It displays the current
manually or through the status of the system (incl.
machine control. pressure,temperature,
drive and contamination).

● Focusing Lens ● Distance Measurement
A high quality optical lens. The unit features high speed, high precision
Adjustable on X, Y-axis. No and without drift, and allows distance
positioning is requested when measurement to be conducted at any
replacing protective lens. working temperature and even under a high
acceleration condition.
● Protective Glass Cartridge ● Mounting of Head
It may prevent dusts and cutting Convenient to tighten.
smoke from polluting the optical
lens and is easy to replace.

Specifications
3015-20 3015-30 3015-40 3015-60 4020-20 4020-30 4020-40 4020-60 6020-20 6020-30 6020-40 6020-60
Movement method mm 3axes simultaneously controlled 3axes simultaneously controlled 3axes simultaneously controlled
Control method FANUC CNC:31i-LB FANUC CNC:31i-LB FANUC CNC:31i-LB
Machining range mm 1500x3000 2000x4000 6000x2000
(X*Y)
Travel(X*Y*Z) mm 1525x3050x150 4015x4010x200 2015x6050x200
Machining speed m/min 120/120/60 120/120/60 120/120/60
Feed rate m/min 110 170 170
Acceleration 2G 2G 2G
Accuracy mm 0.03/1000 0.03/1000 0.05/1000
Repeatability mm ±0.02 ±0.02 ±0.02
accuracy
Power source AC 3 Φ 4C 380V 50Hz AC 3 Φ 4C 380V 50Hz AC 3 Φ 4C 380V 50Hz
Esonator W 2000 3000 4000 6000 2000 3000 4000 6000 2000 3000 4000 6000
Wave length of laser nm 1070±10 1070±10 1070±10
Laser hand Auto Focus Auto Focus Auto Focus
Focusing distance F125/F150(OP) F150 F125/F150(OP) F150 F125/F150(OP) F150
for laser head
Auxiliary gas for Oxygen 10bar；Nitrogen 25bar； Oxygen 10bar；Nitrogen 25bar； Oxygen 10bar；Nitrogen 25bar；
cutting Air 16bar Air 16bar Air 16bar
Table type Chain pull pallet exchange Chain pull pallet exchange Chain pull pallet exchange
Pallet change time S 15~20 15~20 15~20
Max.workpiece load kg 600 2000 1005 1350 2000 2355
Machine dimensions mm 8210x2400x2500 9710x3100x2500 15055x3100x2500
Machining accuracy mm ±0.10 ±0.10 ±0.10
Machine weight kg 7000 9000 11500
