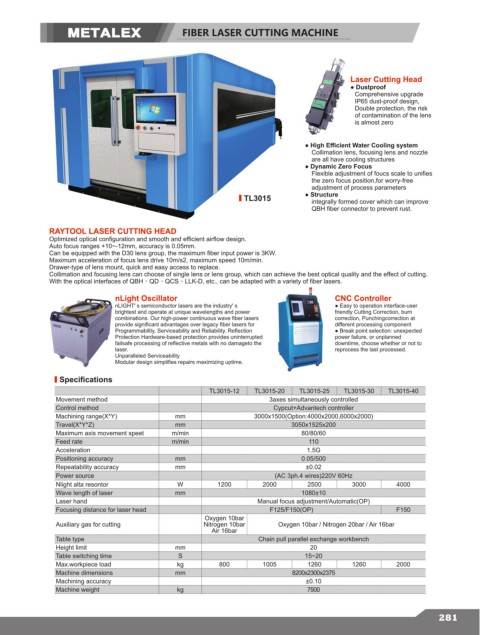

FIBER LASER CUTTING MACHINE

Laser Cutting Head
● Dustproof
Comprehensive upgrade
IP65 dust-proof design,
Double protection, the risk
of contamination of the lens
is almost zero

● High Efficient Water Cooling system
Collimation lens, focusing lens and nozzle
are all have cooling structures
● Dynamic Zero Focus
Flexible adjustment of foucs scale to unifies
the zero focus position,for worry-free
adjustment of process parameters
TL3015 ● Structure
integrally formed cover which can improve
QBH fiber connector to prevent rust.

RAYTOOL LASER CUTTING HEAD
Optimized optical configuration and smooth and efficient airflow design.
Auto focus ranges +10~-12mm, accuracy is 0.05mm.
Can be equipped with the D30 lens group, the maximum fiber input power is 3KW.
Maximum acceleration of focus lens drive 10m/s2, maximum speed 10m/min.
Drawer-type of lens mount, quick and easy access to replace.
Collimation and focusing lens can choose of single lens or lens group, which can achieve the best optical quality and the effect of cutting.
With the optical interfaces of QBH、QD、QCS、LLK-D, etc., can be adapted with a variety of fiber lasers.

nLight Oscillator CNC Controller
nLIGHT' s semiconductor lasers are the industry' s ● Easy to operation interface-user
brightest and operate at unique wavelengths and power friendly Cutting Correction, burn
combinations. Our high-power continuous wave fiber lasers correction, Punchingcorrection at
provide significant advantages over legacy fiber lasers for different processing component
Programmability, Serviceability and Reliability. Reflection ● Break point selection: unexpected
Protection Hardware-based protection provides uninterrupted power failure, or unplanned
failsafe processing of reflective metals with no damageto the downtime, choose whether or not to
laser. reprocess the last processed.
Unparalleled Serviceability
Modular design simplifies repairs maximizing uptime.

Specifications
TL3015-12 TL3015-20 TL3015-25 TL3015-30 TL3015-40
Movement method 3axes simultaneously controlled
Control method Cypcut+Advantech controller
Machining range(X*Y) mm 3000x1500(Option:4000x2000,6000x2000)
Travel(X*Y*Z) mm 3050x1525x200
Maximum axis movement speet m/min 80/80/60
Feed rate m/min 110
Acceleration 1.5G
Positioning accuracy mm 0.05/500
Repeatability accuracy mm ±0.02
Power source (AC 3ph.4 wires)220V 60Hz
Nlight alta resontor W 1200 2000 2500 3000 4000
Wave length of laser mm 1080±10
Laser hand Manual focus adjustment/Automatic(OP)
Focusing distance for laser head F125/F150(OP) F150
Oxygen 10bar
Auxiliary gas for cutting Nitrogen 10bar Oxygen 10bar / Nitrogen 20bar / Air 16bar
Air 16bar
Table type Chain pull parallel exchange workbench
Height limit mm 20
Table switching time S 15~20
Max.workpiece load kg 800 1005 1260 1260 2000
Machine dimensions mm 8200x2300x2375
Machining accuracy ±0.10
Machine weight kg 7500
