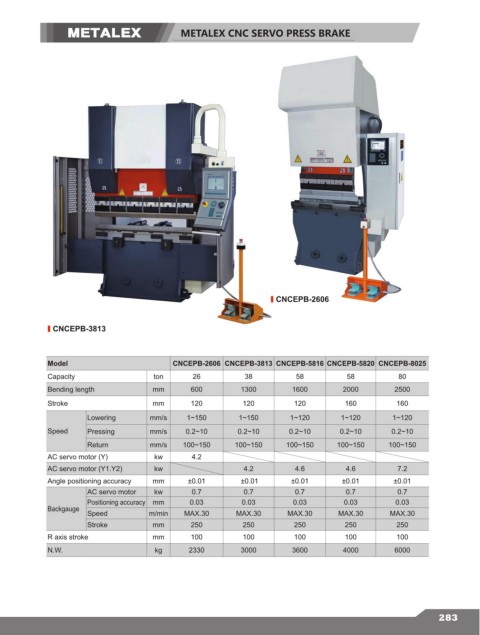

METALEX CNC SERVO PRESS BRAKE

CNCEPB-2606

CNCEPB-3813

Model CNCEPB-2606 CNCEPB-3813 CNCEPB-5816 CNCEPB-5820 CNCEPB-8025
Capacity ton 26 38 58 58 80
Bending length mm 600 1300 1600 2000 2500

Stroke mm 120 120 120 160 160
Lowering mm/s 1~150 1~150 1~120 1~120 1~120
Speed Pressing mm/s 0.2~10 0.2~10 0.2~10 0.2~10 0.2~10
Return mm/s 100~150 100~150 100~150 100~150 100~150
AC servo motor (Y) kw 4.2
AC servo motor (Y1.Y2) kw 4.2 4.6 4.6 7.2
Angle positioning accuracy mm ±0.01 ±0.01 ±0.01 ±0.01 ±0.01
AC servo motor kw 0.7 0.7 0.7 0.7 0.7
Positioning accuracy mm 0.03 0.03 0.03 0.03 0.03
Backgauge
Speed m/min MAX.30 MAX.30 MAX.30 MAX.30 MAX.30
Stroke mm 250 250 250 250 250
R axis stroke mm 100 100 100 100 100
N.W. kg 2330 3000 3600 4000 6000
