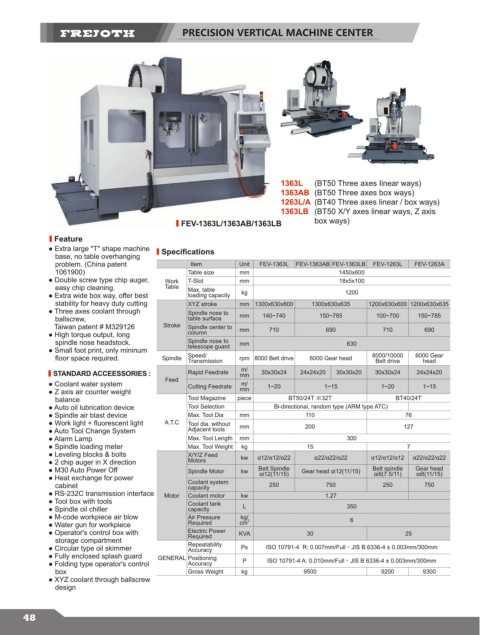

PRECISION VERTICAL MACHINE CENTER

1363L (BT50 Three axes Iinear ways)
1363AB (BT50 Three axes box ways)
1263L/A (BT40 Three axes linear / box ways)
1363LB (BT50 X/Y axes linear ways, Z axis
FEV-1363L/1363AB/1363LB box ways)
Feature
● Extra large "T" shape machine Specifications
base, no table overhanging
problem. (China patent Item Unit FEV-1363L FEV-1363AB FEV-1363LB FEV-1263L FEV-1263A
1061900) Table size mm 1450x600
● Double screw type chip auger, Work T-Slot mm 18x5x100
easy chip cleaning. Table Max. table
● Extra wide box way, offer best loading capacity kg 1200
stability for heavy duty cutting XYZ stroke mm 1300x630x600 1300x630x635 1200x630x600 1200x630x635
● Three axes coolant through Spindle nose to
ballscrew, table surface mm 140~740 150~785 100~700 150~785
Taiwan patent # M329126 Stroke Spindle center to mm 710 690 710 690
● High torque output, long column
spindle nose headstock. Spindle nose to mm 630
● Small foot print, only mininum telescope guard
floor space required. Spindle Speed/ rpm 8000 Belt drive 6000 Gear head 8000/10000 6000 Gear
Transmission
Belt drive
head
m/
STANDARD ACCEESSORIES : Rapid Feedrate min 30x30x24 24x24x20 30x30x20 30x30x24 24x24x20
● Coolant water system Feed Cutting Feedrate m/ 1~20 1~15 1~20 1~15
● Z axis air counter weight min
balance Tool Magazine piece BT50/24T ※32T BT40/24T
● Auto oil lubrication device Tool Selection Bi-directional, random type (ARM type ATC)
● Spindle air blast device Max. Tool Dia mm 110 76
● Work light + fluorescent light A.T.C Tool dia. without
● Auto Tool Change System Adjacent tools mm 200 127
● Alarm Lamp Max. Tool Length mm 300
● Spindle loading meter Max. Tool Weight kg 15 7
● Leveling blocks & bolts X/Y/Z Feed kw α12/α12/α22 α22/α22/α22 α12/α12/α12 α22/α22/α22
● 2 chip auger in X direction Motors
● M30 Auto Power Off Spindle Motor kw Belt Spindle Gear head αi12(11/15) Belt spindle Gear head
● Heat exchange for power αi12(11/15) αi8(7.5/11) αi8(11/15)
cabinet Coolant system 250 750 250 750
capacity
● RS-232C transmission interface Motor Coolant motor kw 1.27
● Tool box with tools Coolant tank
● Spindle oil chiller capacity L 350
● M-code workpiece air blow Air Pressure kg/ 6
● Water gun for workpiece Required cm 2
● Operator's control box with Electric Power KVA 30 25
storage compartment Required
● Circular type oil skimmer Repeatability Ps ISO 10791-4 R: 0.007mm/Full，JIS B 6336-4 ± 0.003mm/300mm
Accuracy
● Fully enclosed splash guard GENERAL Positioning
● Folding type operator's control Accuracy P ISO 10791-4 A: 0.010mm/Full，JIS B 6336-4 ± 0.003mm/300mm
box Gross Weight kg 9500 9200 9300
● XYZ coolant through ballscrew
design
