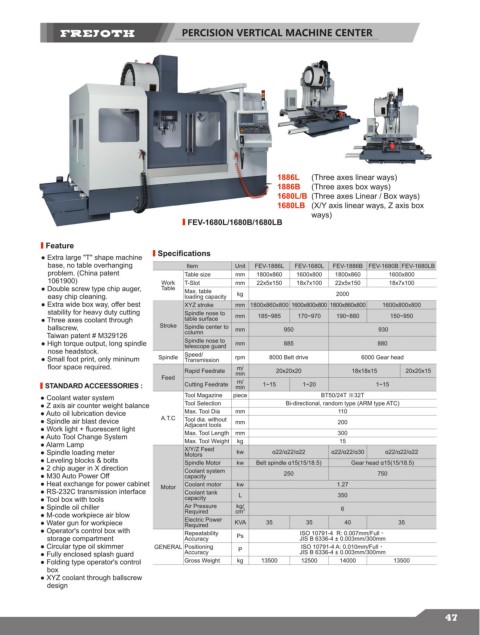

PERCISION VERTICAL MACHINE CENTER

1886L (Three axes linear ways)
1886B (Three axes box ways)
1680L/B (Three axes Linear / Box ways)
1680LB (X/Y axis linear ways, Z axis box
ways)
FEV-1680L/1680B/1680LB

Feature
● Extra large "T" shape machine Specifications
base, no table overhanging Item Unit FEV-1886L FEV-1680L FEV-1886B FEV-1680B FEV-1680LB
problem. (China patent Table size mm 1800x860 1600x800 1800x860 1600x800
1061900) Work T-Slot mm 22x5x150 18x7x100 22x5x150 18x7x100
● Double screw type chip auger, Table Max. table
easy chip cleaning. loading capacity kg 2000
● Extra wide box way, offer best XYZ stroke mm 1800x860x800 1600x800x800 1800x860x800 1600x800x800
stability for heavy duty cutting Spindle nose to
● Three axes coolant through table surface mm 185~985 170~970 190~880 150~950
ballscrew, Stroke Spindle center to mm 950 930
Taiwan patent # M329126 column
● High torque output, long spindle Spindle nose to mm 885 880
telescope guard
nose headstock. Speed/
● Small foot print, only mininum Spindle Transmission rpm 8000 Belt drive 6000 Gear head
floor space required. Rapid Feedrate m/ 20x20x20 18x18x15 20x20x15
Feed min
m/
STANDARD ACCEESSORIES : Cutting Feedrate min 1~15 1~20 1~15
● Coolant water system Tool Magazine piece BT50/24T ※32T
● Z axis air counter weight balance Tool Selection Bi-directional, random type (ARM type ATC)
● Auto oil lubrication device Max. Tool Dia mm 110
● Spindle air blast device A.T.C Tool dia. without mm 200
Adjacent tools
● Work light + fluorescent light
● Auto Tool Change System Max. Tool Length mm 300
● Alarm Lamp Max. Tool Weight kg 15
● Spindle loading meter X/Y/Z Feed kw α22/α22/α22 α22/α22/α30 α22/α22/α22
Motors
● Leveling blocks & bolts Spindle Motor kw Belt spindle α15(15/18.5) Gear head α15(15/18.5)
● 2 chip auger in X direction Coolant system
● M30 Auto Power Off capacity 250 750
● Heat exchange for power cabinet Motor Coolant motor kw 1.27
● RS-232C transmission interface Coolant tank L 350
● Tool box with tools capacity
● Spindle oil chiller Air Pressure kg/ 2 6
● M-code workpiece air blow Required cm
● Water gun for workpiece Electric Power KVA 35 35 40 35
Required
● Operator's control box with Repeatability ISO 10791-4 R: 0.007mm/Full，
storage compartment Accuracy Ps JIS B 6336-4 ± 0.003mm/300mm
● Circular type oil skimmer GENERAL Positioning P ISO 10791-4 A: 0.010mm/Full，
● Fully enclosed splash guard Accuracy JIS B 6336-4 ± 0.003mm/300mm
● Folding type operator's control Gross Weight kg 13500 12500 14000 13500
box
● XYZ coolant through ballscrew
design

47
